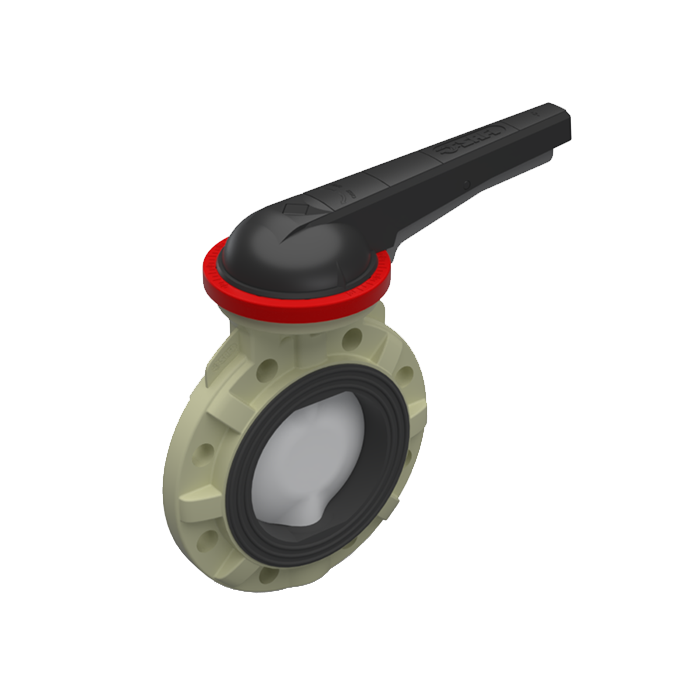

Butterfly valve, PP-H body, PVDF butterfly, DIN* wafer type, with lever handle Serie 3700P/3702P PVDF

Product sheet application/pdf - 2.05Mo

Installation manual application/pdf - 1.73Mo

Options Serie 3700P/3702P

Many connections and options available, see our Product sheet.

References

EPDM Seals

DIMENSIONS					PN	Reference
dmm	DNmm	DNinch	Hmm	Emm	PNbar
63	50	2''	168	41	10	3702P05WWE
75	65	2''1/2	173	45	10	3702P06WWE
90	80	3''	183	45	10	3702P07WWE
110	100	4''	197	55	10	3702P08WWE
140	125	5''	250	65	10	3700P09WWE
160	150	6''	265	71	10	3702P10WWE
225	200	8''	307	87	10	3700LP11WWE

FPM Seals

DIMENSIONS					PN	Reference
dmm	DNmm	DNinch	Hmm	Emm	PNbar
63	50	2''	168	41	10	3702P05WWV
75	65	2''1/2	173	45	10	3702P06WWV
90	80	3''	183	45	10	3702P07WWV
110	100	4''	197	55	10	3702P08WWV
140	125	5''	250	65	10	3700P09WWV
160	150	6''	265	71	10	3702P10WWV (1)
225	200	8''	307	87	10	3700LP11WWV

* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150 (1) possibility of gasket in high performance FPM (F grade) (*) To order a butterfly valve ready for actuation, please add the code ACTUREADY after the code of the valve. For example 3700P09WWE + ACTUREADY - for DN50 to DN100 + DN150: the handled is removed. - for DN125, DN200 and higher : the handled or the gearbox is removed, the face is machined and drilled

EPDM Seals

FPM Seals

Shaft for butterfly valve

LUG inserts in SS316 for DIN* butterfly valve

Maintenance kit for butterfly valve

Lockable handle for butterfly valve

For butterfly valve series 3600/3602, 3610, 3700/3702, 3800/3802

Double acting (DA)

Failsafe closed

Failsafe open

Standard

Failsafe

Safety shield, mixed PVC
