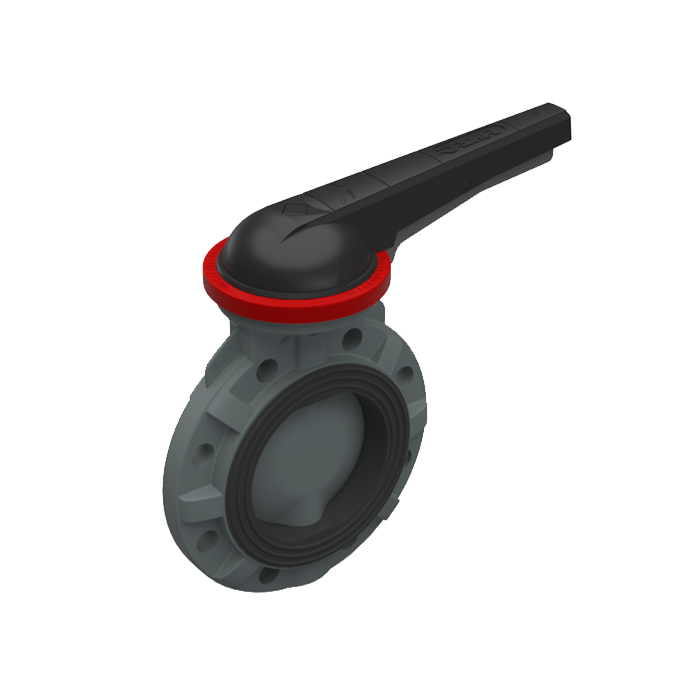

Butterfly valve, PVC-U body, PVC-U butterfly, ANSI* wafer type, with lever handle Serie 3600/3602 PVC-U

Product sheet application/pdf - 2.05Mo

Installation manual application/pdf - 1.73Mo

Standards and approvals

Options Serie 3600/3602

Many connections and options available, see our Product sheet.

References

EPDM Seals

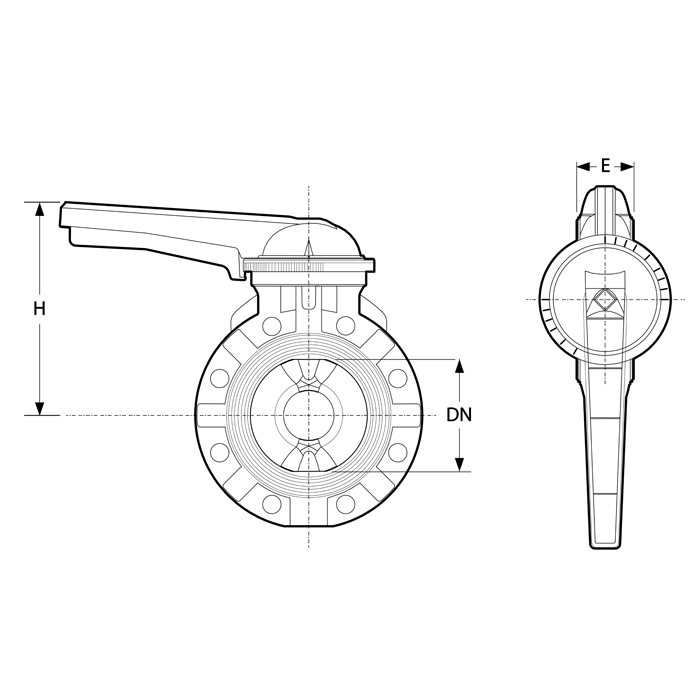

DIMENSIONS					PN	Reference
dmm	DNmm	DNinch	Hmm	Emm	PNbar
63	50	2''	168	41	10	3602A05WWE
75	65	2''1/2	173	45	10	3602A06WWE
90	80	3''	183	45	10	3602A07WWE
110	100	4''	197	55	10	3602A08WWE
140	125	5''	256	65	10	3600A09WWE
160	150	6''	265	71	10	3602-10WWE
225	200	8''	297	87	10	3600AL11WWE

FPM Seals

DIMENSIONS					PN	Reference
dmm	DNmm	DNinch	Hmm	Emm	PNbar
63	50	2''	168	41	10	3602A05WWV
75	65	2''1/2	173	45	10	3602A06WWV
90	80	3''	183	45	10	3602A07WWV
110	100	4''	197	55	10	3602A08WWV
140	125	5''	256	65	10	3600A09WWV
160	150	6''	265	71	10	3602-10WWV (1)
225	200	8''	297	87	10	3600AL11WWV

* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150 (1) possibility of gasket in high performance FPM (F grade) (*) To order a butterfly valve ready for actuation, please add the code ACTUREADY after the code of the valve. For example 3600-09WWE + ACTUREADY - for DN50 to DN100 + DN150: the handled is removed. - for DN125, DN200 and higher : the handled or the gearbox is removed, the face is machined and drilled

EPDM Seals

FPM Seals

Shaft for butterfly valve

LUG inserts in SS316 for ANSI* butterfly valve

Maintenance kit for butterfly valve

Lockable handle for butterfly valve

For butterfly valve series 3600/3602, 3610, 3700/3702, 3800/3802

Double acting (DA)

Failsafe closed

Failsafe open

Standard

Failsafe

Safety shield, mixed PVC
