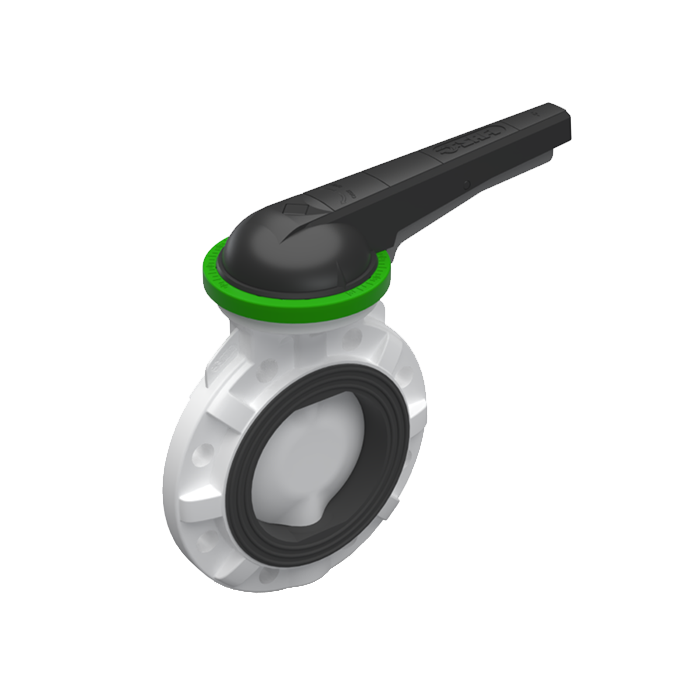

Butterfly valve, PVDF body, PVDF butterfly, DIN* wafer type, with lever handle Serie 3800/3802 PVDF

Product sheet application/pdf - 2.05Mo

Installation manual application/pdf - 1.73Mo

Options Serie 3800/3802

Many connections and options available, see our Product sheet.

References

EPDM Seals

DIMENSIONS					PN	Reference
dmm	DNmm	DNinch	Hmm	Emm	PNbar
63	50	2''	168	43	10	3802-05WWE
75	65	2''1/2	173	45	10	3802-06WWE
90	80	3''	183	45	10	3802-07WWE
110	100	4''	197	55	10	3802-08WWE
140	125	5''	260	65	10	3800-09WWE
160	150	6''	265	71	10	3802-10WWE
225	200	8''	295	87	10	3800L11WWE

FPM Seals

DIMENSIONS					PN	Reference
dmm	DNmm	DNinch	Hmm	Emm	PNbar
63	50	2''	168	43	10	3802-05WWV
75	65	2''1/2	173	45	10	3802-06WWV
90	80	3''	183	45	10	3802-07WWV
110	100	4''	197	55	10	3802-08WWV
140	125	5''	260	65	10	3800-09WWV
160	150	6''	265	71	10	3802-10WWV (1)
225	200	8''	295	87	10	3800L11WWV

* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150 (1) possibility of gasket in high performance FPM (F grade) (*) To order a butterfly valve ready for actuation, please add the code ACTUREADY after the code of the valve. For example 3800-09WWE + ACTUREADY - for DN50 to DN100 + DN150: the handled is removed. - for DN125, DN200 and higher : the handled or the gearbox is removed, the face is machined and drilled

EPDM Seals

FPM Seals

Shaft for butterfly valve

LUG inserts in SS316 for DIN* butterfly valve

Maintenance kit for butterfly valve

Lockable handle for butterfly valve

For butterfly valve series 3600/3602, 3610, 3700/3702, 3800/3802

Double acting (DA)

Failsafe closed

Failsafe open

Standard

Failsafe

Safety shield, mixed PVC
